FCC Grants Harris authorization for Ground and Fixed Airborne Radios (SmartSky)

FCC Grants for Harris Ground and Airborne radios

On the day SmartSky announced FCC approval, Tim Farrar sent a tweet out revealing the associated FCC Grant issued to Harris, for a ground radio head and an airborne radio system.  Tim noted that the grant was issued on the apparent date of application, and coincidentally upon the day that Gogo announced their unlicensed spectrum offering.  The test reports were completed earlier in the year.

Airborne and Ground radios communicate using a combination of control, forward and return channels.  Control channels are 540-900 kHz.  Traffic channels are 4.5-9 MHz.

Airborne Radio

Up to 1 Watt transmitter selecting one antenna between two Yagi (6 dBi) and two patch (4 dBi) antennas, for transmit and receive in one assembly.

A second receive-only antenna is installed on the belly of the airplane, 30" long and 3" wide.  With a wavelength of about 5", perhaps 6 - 12 elements, assuming each element is about 6 dBi, possible gain might been in the range of 13-17 dBi.

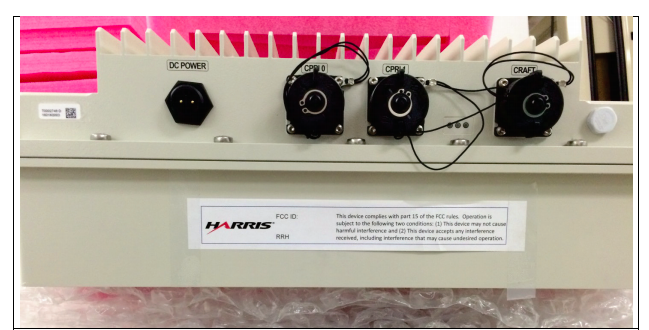

Ground Station

0.17 Watt, about 29 dBi antenna.

Harris is able to offer a bit more gain than expected by purely looking at power levels, by offsetting with slight reductions in duty cycle.

There is no mention of mobile operation.  Part 15C specifically limits operation to fixed applications.

FCC 15C Authorization

The FCC authorization for the frequencies of interest is based primarily on 15.247.

Code of Federal Regulations,

Title 47 → Chapter I → Subchapter A → Part 15 → Subpart C

§15.247  Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz.

CLICK HERE FOR PART 2 - HOW SMART ANTENNA SYSTEMS POWER UNLEASH UNLICENSED SPECTRUM FOR AIR-TO-GROUND NETWORKS - AND PERFORMANCE ESTIMATES BASED ON THE HARRIS GRANTS

Stay tuned!
